Items/Model TS50M Picture Burn Rate Average 50 kg/hour Feed Capacity Average 50-150 per feeding Control Mode PLC(Programmable Logic Controller Incinerator) Combustion Chamber 450L Internal Dimensions 75x75x80cm Secondary Chamber 225L Smoke Filter Chamber Yes Feed Mode Manual Feeding Voltage 220V Power 0.5Kw Oil Consumption (kg/hour) Average 13.3 Gas Consumption (N.G, m3n/Hour) Average 16 Gas Consumption […]

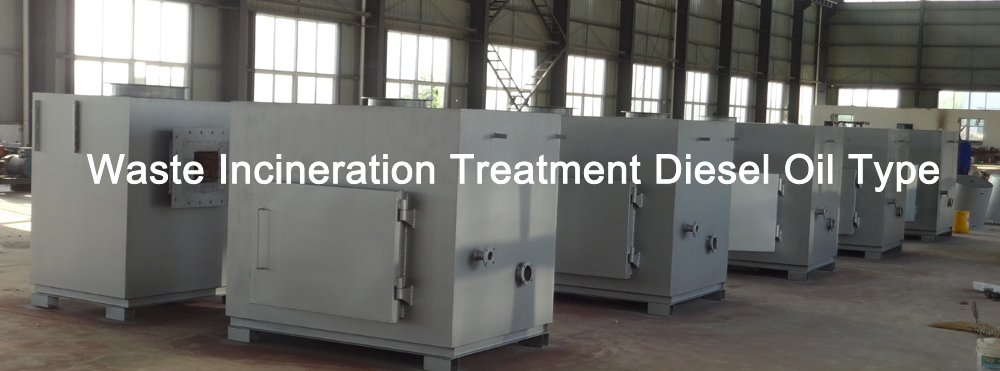

Waste Incineration Treatment Diesel Oil type Model TS150 Main Parts List as below: Primary combustion chamber Secondary combustion chamber smoke filter chamber incinerator PLC control case chimney, 10meters, stainless steel Italy Oil fule burner oil tank 300liters with full spare parts: oil burner, air blower, temperature thermocouple

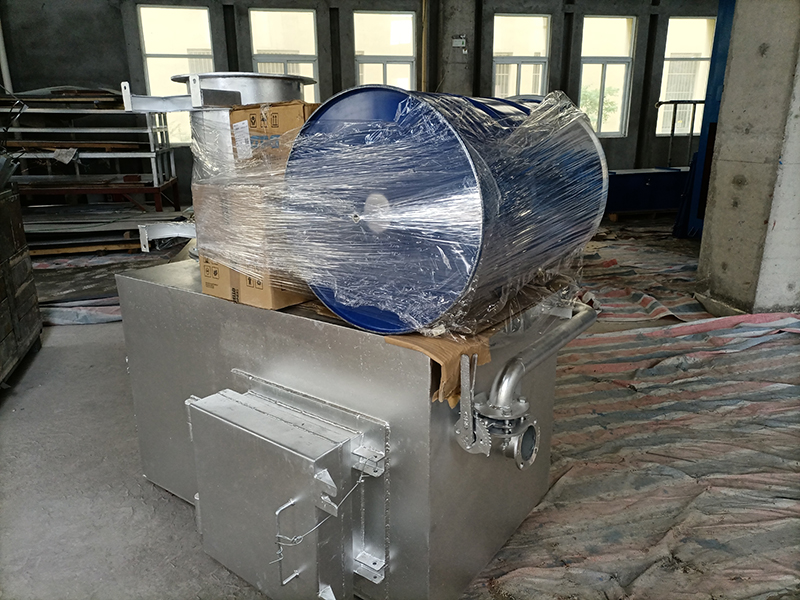

TS10 PLC Waste Incinerator Outline Dimension:1.75 x 1.3 x 1.7m Weight: Ave.1500kgs Main body(Primary combustion chamber) Material：Carbon Steel Q235B+Stainless Steel 310s+refractory firebrick material(high temperature resistance up to 1750℃) Capacity: 10-20kg/batch Combustion temperature: 800-1000℃ With chamber door, oxygen supplementation wind port, burner port, temperature control and alarm device, etc. [1 unit ] Secondary combustion chamber Material：Carbon Steel Q235B+Stainless Steel 310s+refractory firebrick material(high temperature resistance up to 1750℃) Combustion temperature:1000-1200℃ With observation port, burner port, temperature control and alarm device, etc. [1 unit ] High temperature flue gas filtration chamber Material: Outside plate: Q235B, Inside acid-resisting, alkali-resisting refractory poured material. With ash door and filtration material. [1 unit ] 1# BURNER OF 1# CHAMBER Riello brand （Italy） (High quality, combustion-resisting) Fuel: Natural gas [1 unit ] 2# BURNER OF 2# CHAMBER Riello brand （Italy） (High quality, combustion-resisting) Fuel: Natural gas [1 unit ] Chimney Material: Stainless steel，304 Length: 5m ( other length as customer request） [1 unit ] Temperature control device -Thermocouple [2 unit ] Control valve [2 pcs ] Fastening and sealing elements -Bolts, nuts, washers, paper packing etc. [1 set ] Control Cabinet Rain proof type Power indicator Voltage: 220V Temperature indicator Overload protector Leakage protection device [1 set ] Nanjing Clover Medical Technology Co.,Ltd. Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) Burn Rate (Average) 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour Control Mode PLC Auto. PLC Auto. PLC […]
Model YD-100 Picture Burning Rate 100-150 kgs/hour Primary Combustion Chamber 2000 Liters Secondary Combustion Chamber 500 Liters Feed Mode Manual Voltage 220V/380V Power 2.5Kw Fuel Type Diesel Oil Burner Italy Original Oil Consumption (Diesel Oil) Average 28 kg/hour Gas Consumption (Natural Gas) *** Internal Dimensions 180x115x98 cm (primary chamber) External Dimensions 270x185x280cm (without chimney) Temperature […]
